Product Details:
|
| Name: | 50*70mm , Mining Use , Horizontal Gabion Wire Mesh Machine | Weight (KG): | 5500 |
|---|---|---|---|
| Key Selling Points: | High Quality | Product Name: | Gabion Machine For Making Gabion Box |
| Warranty Of Core Components: | 2 Years | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Width(mm): | Can Be Customized | Wire Diameter: | 1.6-3.5mm |
| Color: | Requirement | Mesh Size: | Can Be Customizable |
| Application: | Gabion Box Weaving | Power: | 7.5kw |
| Voltage: | 380V 50Hz 3Phase/Customized | Type: | Automatic |
| High Light: | Horizontal Gabion Making Machine,Anti Seismic Gabion Making Machine,7.5kw Horizontal Wire Drawing Machine |
||
Gabion basket machine have smooth operation, low noise and high efficiency characteristics. Gabion mesh machine, also called horizontal hexagonal wire mesh machine or gabion basket machine, Stone cage machine, Gabion box machine, is to produce the hexagonal wire mesh for reinforcement stone box use.
Specification:
| Model | Mesh Size |
Max Width |
Wire Diameter | Twisted Number | Drive Shaft Speed | Motor Capacity |
| / | mm | mm | mm | m/h | kw | |
| HGTO-6080 | 60*80 | 3700 | 1.6-3.0 | 3/5 | 80-120 | 7.5 |
| HGTO-80100 | 80*100 | 1.6-3.0 | ||||
| HGTO-100120 | 100*120 | 1.6-3.5 | ||||
| HGTO-120150 | 120*150 | 1.6-3.2 | 120+ | |||
| Dimension | Weight:5.5t | |||||
| Remark | Can be customized according to customer requirements | |||||
Advantage:
1. The new machine adopts horizontal type structure, Running smoother
2. Its easy to operate this machine, just need 1-2 workers is ok.
3. Reduced volume, reduced floor area, greatly reduced electricity consumption, and reduced costs in many aspects.
4. Simple installation, No special technology needed
5. Suitable for hot dip galvanized wire, zinc aluminum alloy, low carbon steel wire, electric galvanized, PVC plastic and other materials.

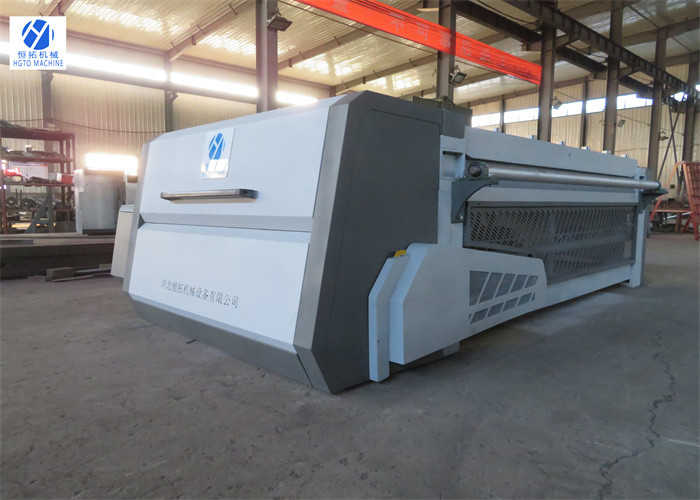

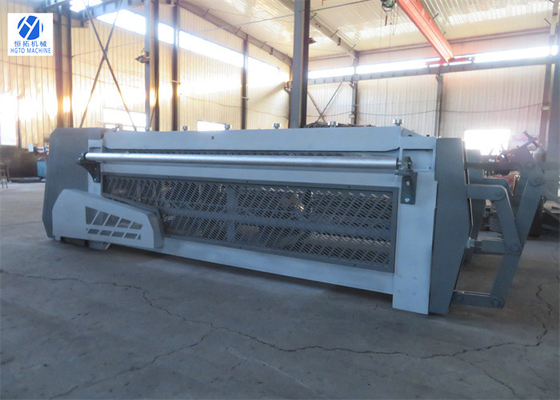

Main machine picture:
Finished mesh picture
| RFQ |
Q: Where is your factory located?
A: Our factory is located in Dingzhou and Shijiazhuang county, Hebei Province of China.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 30years. We have our own technology develop department and testing deparment.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. Just choose US.
Our Factory:
