100mm Vertical Gabion Wire Mesh Machine Hexagonal Anti Rusting

Large Image : 100mm Vertical Gabion Wire Mesh Machine Hexagonal Anti Rusting

Product Details:

Place of Origin:	CHINA
Brand Name:	HGTO
Certification:	ISO
Model Number:	HGTO-4300

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	NORMAL
Delivery Time:	25-30DAYS
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30SETS/MONTH

Contact Now

100mm Vertical Gabion Wire Mesh Machine Hexagonal Anti Rusting

Description

Name:	100mm Vertical Hexagonal Wire Gabion Mesh Making Machine	SPEED:	50times/min, 200m/h
Weight:	18.5t	Mesh Size:	Can Be Set According To Customer Requirements
Mesh Width:	Can Be Set According To Customer Requirements	Wire Diameter:	4.0mm
Wire Diameter:	1.6-3.5mm	Warranty:	2 Years
Color:	Requirement	Application:	Gabion Box Weaving
Mesh Width:	Max. 4500mm	Speed:	80-200m/h
High Light:	100mm Gabion Wire Mesh Machine , Vertical Gabion Wire Mesh Machine , Anti Rusting Hexagonal Wire Mesh Machine

100mm Vertical Hexagonal Wire Gabion Mesh Making Machine

Detailed Product Description:
The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.We can manufacture gabion machine according to customer request.

Specification of heavy type gabion wire mesh machine:

Mesh size	Width	Wire diamater	Spindle Speed	Power of motor	Theoretic output
(mm)	(mm)	(mm)	(r/min)	(kw)	(m/h)
60X80	2300	1.6-3.0	25	11	165
80X100		1.6-3.0	25		195
100X120		1.6-3.2	25		225
120X150		1.6-3.5	20		255
60X80	3300	1.6-3.0	25	15	165
80X100		1.6-3.2	25		195
100X120		1.6-3.5	25		225
120X150		1.6-3.8	20		255
60X80	4300	1.6-2.8	25	22	165
80X100		1.6-3.0	25		195
100X120		1.6-3.5	25		225
120X150		1.6-3.8	20		255

Advantage of heavy type gabion wire mesh machine:

1:drive mechanism is used to replace the gear swing arm mechanism.High speed, low vibration, high efficiency

2:Equipment control system adopts touch screen and PLC control, simple operation, man-machine dialogue interface.

3:The use of concentric Spindle rod greatly reduces the moment of inertia of the equipment and reduces the noise.

4:Equipment running time: 50 times /min, 200 meters /h.

5:Power: 380V, total power: 22KW, total weight: 18.5t

6:Matching automatic spring machine.

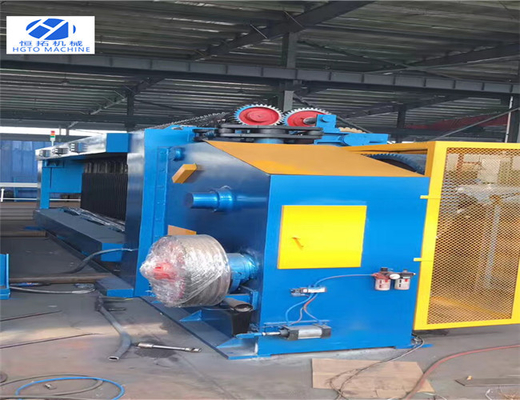

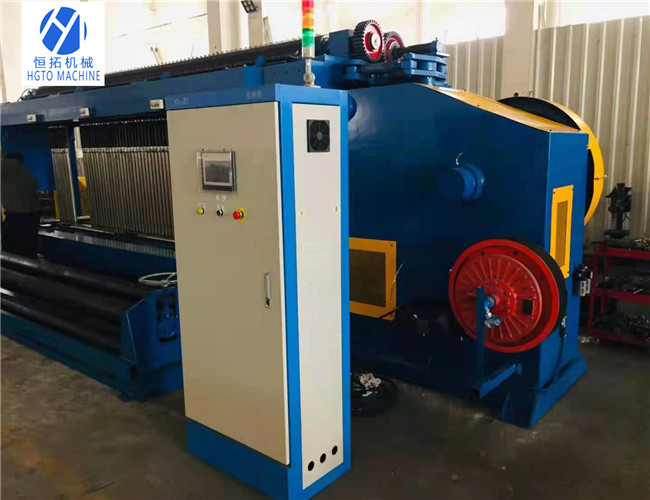

Machine Pictures:

100mm Vertical Gabion Wire Mesh Machine Hexagonal Anti Rusting 0

100mm Vertical Gabion Wire Mesh Machine Hexagonal Anti Rusting 2
