Product Details:
|
| Name: | CNC Hexagonal Wire Mesh Weaving Machine For Breeding Industry | Weight: | 4-5.7t |
|---|---|---|---|
| Mesh Width: | 2500/3000/4000mm | Type: | High Speed |
| Motor: | Inverted Motor | Wire Diameter: | 0.38-2.5mm |
| Warranty: | 2 Years | Application: | For Hexagonal Wire Mesh |
| Mesh Size: | Can Be Customized | Mesh Type: | Rolling Mesh |
| High Light: | cnc hexagonal wire mesh making machine,4000mm hexagonal wire mesh making machine,4000mm hexagonal wire mesh machine |
||
CNC Hexagonal Wire Mesh Weaving Machine For Breeding Industry
Advantage of PLC hexagonal wire mesh machine:
Smooth operation, low noise, fast weaving speed.The whole equipment is saving electricity.More labor-saving, as a result of the elimination of the spring process, one equipment is enough, skilled workers can operate two equipment.
Fault protection, overload protection, motor if overload or the device will automatically stop and alarm if the power is suddenly increased, and the screen will be displayed Indicate the fault location without damage to the mechanical structure.
Reset recovery function, can be used when the device is confused.With this function, we wrote work to restore factory Settings in the system. as long as the device is adjusted to the specified position, one-key recovery,Easy to adjust.
Specification of our CNC hexagonal wire mesh machine:
|
Type |
Mesh Size(mm) | Wire diameter (mm) | Machine dimesion(mm) | Mchine size | Motor(kw) | Weight(T) |
| HGTO-2500 | 16 | 2500/3000/4000 | 0.38-0.7 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 21-22 | 2500/3000/4000 | 0.40-0.7 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 25 | 2500/3000/4000 | 0.45-1.1 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 30-32 | 2500/3000/4000 | 0.50-1.2 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 40-45 | 2500/3000/4000 | 0.50-1.4 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 55-57 | 2500/3000/4000 | 0.60-2.0 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| HGTO-2500 | 60-65 | 2500/3000/4000 | 1.00-2.0 |
4700*1750*1650 5300*1750*1650 6600*1750*1650 |
3 | 4-5.7 |
| Remark:Can manufacture customized type | ||||||
Company Brief:
Our company Is a integrates research and development, production and sales as one of the manufacturers. Since its inception, we insist on the principle of “Quality to service, Customers are first”.
Our wire mesh machine have always been in the industry leading level, the main products are Hexagonal wire mesh machine, Straight and reverse twisted hexagonal wire mesh machine, Gabion wire mesh machine, Tree root transplant wire mesh machine, Barbed wire mesh machine, Chain link fence machine, weld wire mesh machine, nail making machine and so on.
All departments work together to make sure all the machines and products good quality and supply good after-sales service. Due to the joint efforts of all staff, our products are exported to many countries, and gain good reputation and long cooperation from domestic and overseas.

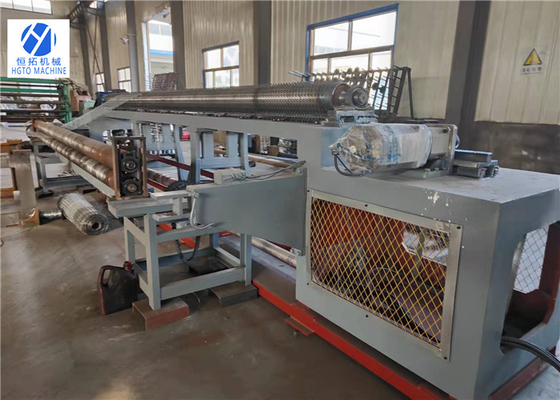

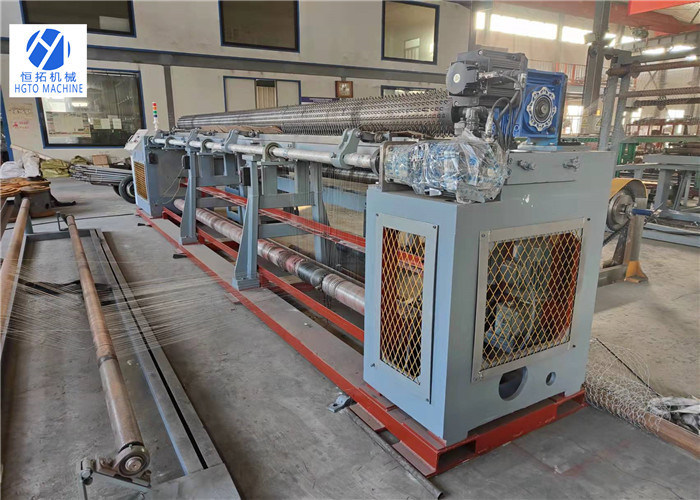

Machine Detail:
Finished Mesh:
Factory Image:
