Product Details:
|
| Name: | PLC Hexagonal Wire Mesh Machine | Voltage: | 220V/380V/415V/440V |
|---|---|---|---|
| Style: | Fully Automatic | Wire Diameter: | 0.45-1.1mm |
| Color: | Can Be Customized | Application: | Hexagonal Wire Mesh Making |
| Mesh Size: | Customzied | Mesh Width: | Customzied |
| Control System: | PLC+touch Screen | Mesh Type: | Rolling Mesh |
| High Light: | 440V Hexagonal Wire Mesh Machine,120M/H Hexagonal Wire Mesh Machine,Waterproof Automatic Wire Mesh Machine |
||

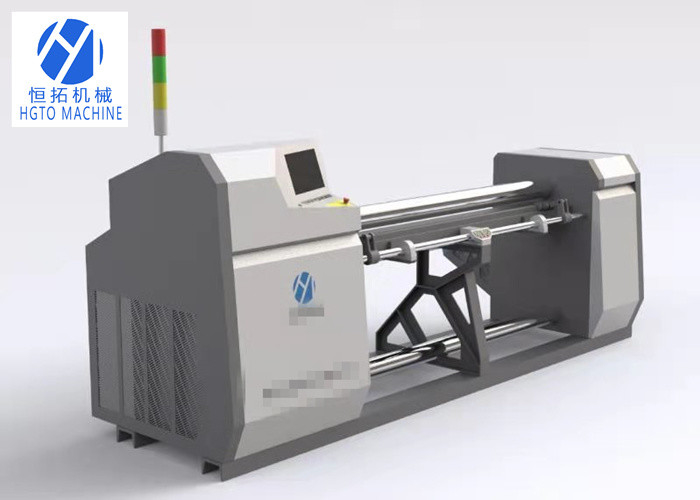

PLC Hexagonal Wire Mesh Machine
Technical Parameters:
| Raw material | Galvanized steel wire, PVC coated wire |
| Wire diameter | Normally 0.40-2.2mm |
| Mesh size | 1/2"(15mm); 1"(25mm or 28mm); 2"(50mm); 3"(75mm or 80mm)............ |
| Mesh width | can be customized according to customer requirements |
| Working speed |
If your mesh size is 1/2'', it is about 80M/h If your mesh size is 1'', it is about 120M/h |
| Number of twist | 6 |
| Note |
1. One set machine can only do one mesh opening. 2. We accept an special orders from any clients. |
Advantages of machines:
1: Fault protection,overload protection, motor if overload or the device will automatically stop and alarm if the power is suddenly increased, and the screen will be displayed indicate the fault location without damage to the mechanical structure.
2: Power off protection function. The equipment in the process of running suddnly power off, The system will run for a short time to record the location of the power outage, and then the work can be carried out smoothly without adjustment when the power is switched on.
3: Location memory function, our device can be in any action link make the device stop working losing position, which is convenient for start-stop operation.
4: Reset recovery function, can be used when the device is confused with this function,we wrote worke to restorefactory settings in the system. as long as the device is adjusted to the specified position, One-key recovery,Easy to adjust.
Our wire mesh machine have always been in the industry leading level, the main products are Hexagonal wire mesh machine, Straight and reverse twisted hexagonal wire mesh machine, Gabion wire mesh machine, Tree root transplant wire mesh machine, Barbed wire mesh machine, Chain link fence machine,weld wire mesh machine, nail making machine and so on.
All departments work together to make sure all the machines and products good quality and supply good after-sales service. Due to the joint efforts of all staff, our products are exported to many countries, and gain good reputation and long cooperation from domestic and overseas.
Our service/guerantee:
1: Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
2: Within guarantee time, if any components are broken under normal condition, we can change for free
3: Complete installation instructions, circuit diagram, manual operations and machine layout.
4: Timely reply for your machine questions, 24 hours support service.
5. All the parts of gabion machine are processed by our own factory; no parts were send to outside to process, so the quality can be ensured.
6. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our technician to help install the machines in your country, and also could supply all the spare parts with cost price if customer need.
