Product Details:
|
| Name: | 80mm , 4m , Garden Use Plc Hexagonal Wire Mesh Machine | Weight: | 4-5.7 T |
|---|---|---|---|
| Mesh Width: | 2500/3000/4000 | Type: | HGTO |
| Motor: | 3 | Warranty: | 2 Years |
| Power: | 3 Kw | ||
| High Light: | PLC Hexagonal Wire Mesh Machine,HGTO Hexagonal Wire Mesh Machine,4m Hexagonal Mesh Machine |
||
80mm , 4m , Garden Use Plc Hexagonal Wire Mesh Machine
Advantages of reverse twist hexagonal wire mesh machine:
Smooth operation, low noise, fast weaving speed. The whole equipment is driven by a 2.2kw motor, saving electricity, More labor-saving, as a result of the elimination of the spring process, one equipment is enough, skilled workers can operate two equipment.
Specification of Straight and Reverse Twisted hexagonal Wire Mesh Mchine:
| Mesh size(mm) | Mesh Width(mm) | Wire diameter | Number of twists | Motor (kw) |
| 16 | 2500/3000/4000 | 0.38-0.7 | 6 | 3 |
| 2 | 2500/3000/4000 | 0.40-0.7 |
6 |
3 |
| 25 | 2500/3000/4000 | 0.45-1.1 | 6 | 3 |
| 30-32 | 2500/3000/4000 | 0.5-1.2 | 6 | 3 |
| 40-45 | 2500/3000/4000 | 0.5-1.4 | 6 | 3 |
| 55-57 | 2500/3000/4000 | 0.6-2.0 | 6 | 3 |
| 60-65 | 2500/3000/4000 | 1.0-2.0 | 6 | 3 |
Remark: can manufacture customized type.

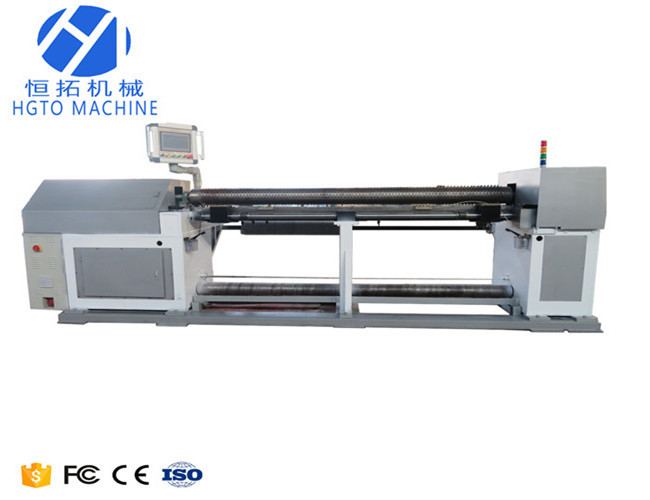

Machine Image:
Auxiliary equipment(Spool Winding Machine):
Specification of spool winding machien:
| Name | Overall Size | Weight | Motor |
| Spool Winding Machine | 1000*1500*700mm | 0.75t |
0.75kw
|
Factory Image:
