Product Details:
|
| Name: | Farming Use , 1 / 2 Inch Hole , 4m + CNC Hexagonal Wire Mesh Making Machine | Mesh Width: | 4000mm |
|---|---|---|---|
| Twisting Number: | 6 | Weight: | 4-6T |
| Warranty: | 2 Years | Wire Diameter: | 0.38-2.5mm |
| Color: | Can Be Customized | Application: | For Hexagonal Wire Mesh |
| Mesh Size: | Can Be Customized According To Customer Requirements | Mesh Width: | Can Be Customized |
| High Light: | Reverse Mesh Wire Making Machine,CNC Mesh Wire Making Machine,6 Twists Steel Mesh Making Machine |
||
Farming Use , 1 / 2 Inch Hole , 4m + CNC Hexagonal Wire Mesh Making Machine
Advantages of CNC Hexagonal Wire Mesh Making Machine:
1: Servo motor to drive weaving process, adjustable speed, running fast, less noise.
2: Inching/single-step control button, easy to operate.
3: Estra alarm to stop machine(when wire mesh broken, or set numbers finished.
4: Automatically wing up mesh into rolls.
5: can weave 2-4 mesh with same time.
6: Automatically central lubrication system to reduce machine damages.
Specification of CNC reverse hexagonal wire mesh machine:
|
|
Galvanized steel wire, PVC coated wire. | ||||
| Wire diameter | 0.38-0.8mm | 0.45-1.1mm | 0.7-1.6mm | 0.7-1.8mm | |
| Mesh size | 1/2" | 1" | 2" | 3" | |
| Mesh width | 4000mm | 4000mm | 4000mm | 4000mm | |
| Working speed | 100-120m/h | 95-100m/h | 135-150m/h | 140-160m/h | |
| Motor | 10-13.5KW | 10-13.5KW | 10-13.5KW | 10-13.5KW | |
| Dimension | 6*1.3*1.6m | ||||
| Machine Weight | 3.5Ton | ||||
| Note: 1. One hexagonal mesh machine can only make one hole size. 2. Special hole size can be customized as your request. |
|||||

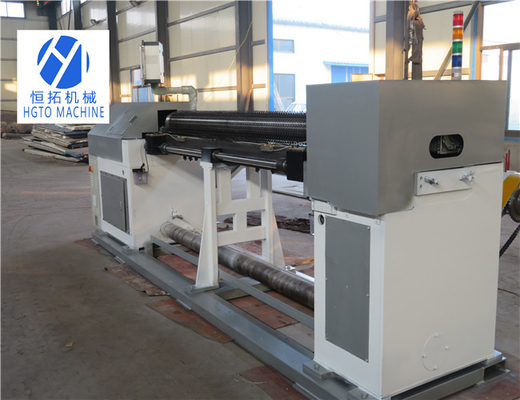

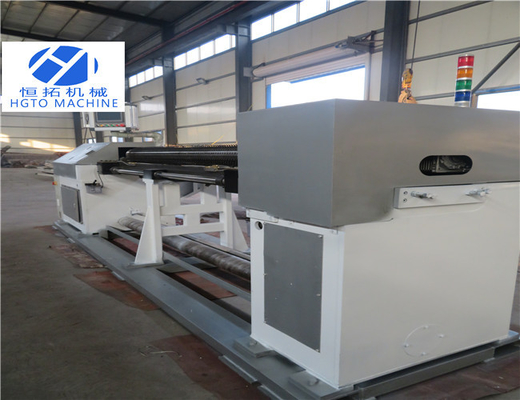

Machine Image:
Finished wire mesh:
Factory Image:
