Product Details:
|
| Name: | Chain Link Fencing Machine | Material: | Printed |
|---|---|---|---|
| Motor: | Servo Motor | Finish Product: | Chain Link Fence Mesh In Rolls |
| Mesh Width: | Max.6000mm ( Customized ) | Machine Type: | Double Wire Spiral Chain Link Fence Making Machine |
| Voltage: | 380v / 220v / 415v / 440v | Warranty: | 2 Years |
| Type: | Fully Automatic | Certification: | ISO9001,CE ISO |
| High Light: | Shockproof Chain Link Fence Machine,Highway Chain Link Fence Machine,220v Diamond Mesh Fence Making Machine |
||
Custom - Made , Diamond Shape , Hot Dip Diamond Fence Making Machine
Working principle:
1.The wire is taken in from payoff stand and transported into dies where Diamond Size takes shape.
2. Finished wire is stitched as diamond holes.
3. At last, the chain link is automatically rolled by receiving wheels.
4. fences for playground and gardens, highway, railway, airport, port, etc.
Advantages :
1. PLC (programmable Logic Controller)
2. Manufacturing chain link fences of different sizes
3. Servo motor 5.5kw(output power 16.5kw)
4. Alarm device which can stop the machine automatically or remind operator of feeding the machine timely.
5. Additional shutdown device to stop the machine conveniently
6. Single die double spiral.
7. Sides of chain link fence can be twisted or knuckled as required.
Specification:
| Model | HGTO-20 | HGTO-25 |
| Wire diameter | 1.6-4mm | 2-4mm |
| Mesh size | 20-100mm | 25-100mm |
| Mesh width | 0.5-4m | 0.5-4m |
| Speed | 70-80m²/h | 120-180m²/h |
| Mesh length | 30m, adjustable freely as your request | |
| Mesh side | Knuckled and twisted, or knuckle, or twisted | |
| Raw material | Galvanized wire, PVC coated wire, etc. | |
| Machine size | 4.2*2.2*1.7m | 6.7*1.43*1.8m |
| Weight | 2000kg | 4200kg |
FAQ:
Q: Are you the factory?
A: Yes,We are a professional wire mesh machines manufacturer. We dedicated in this industry for 30 years. We can offer you high quality machines.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in ding zhou and Shijiazhuang county, hebei Province, China.All our clients, from home or abroad, are warmly welcome to visit our company !
Q: How much is your machine ?
A: The price is depended on 3 factors:wire diameter, mesh size,and mesh width.
Q: What is your payment terms?
A:Usually by T/T ( 30% in advance, 70% T/T before shipment) or 100% irrevocable L/C at sight, or cash etc. It is negotiationable.
Q: Do your supply includes installation and debugging ?
A: Yes. We will send our best engineer to your factory for installation and debugging. The cost will be quoted separately if you need such service.
Q: how can we guarantee quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;

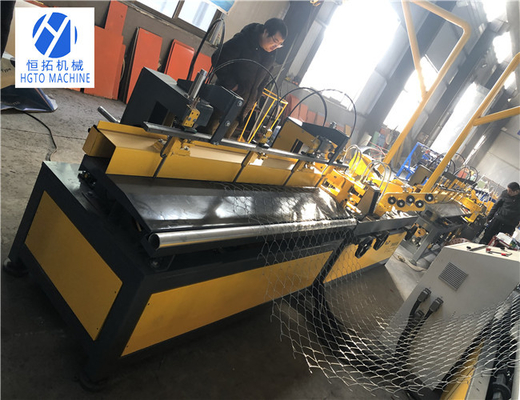

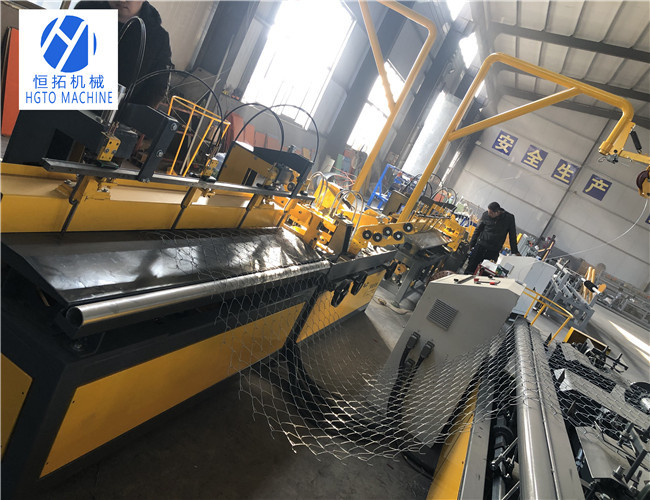

Main Machine Picture:
