Product Details:
|
| Name: | Hot Dip Gavernized Military Field Use Barbed Wire Making Machine | Material: | Iron Wire |
|---|---|---|---|
| Motor: | 3KW | Weight: | 1000kg |
| Distance: | 3-6inch | Output: | 740-1485m/h |
| Warranty: | 2 Years | Type: | Barbed Wire Coil |
| Machine Type: | Barbed Wire Machine | Barbed Wire Diameter: | 1.6-2.8mm |
| High Light: | Razor Automatic Barbed Wire Making Machine,Galvanized Automatic Barbed Wire Making Machine,1485m/H Razor Barbed Wire Making Machine |
||
Hot Dip Gavernized Military Field Use Barbed Wire Making Machine
Barbed wire is a type of steel fencing wire constructed with sharp edges or points arranged at intervals along the strands. It is used to construct inexpensive fences and is used atop walls surrounding secured property. It is also a major feature of the fortifications in trench warfare (as a wire obstacle).
The barbed wire machine is divided into :
1 . Double wire barbed wire machine (CS-A)
2 . Single wire barbed wire machine (CS-B)
3 . Reverse twist barbed wire machine (CS-C)
FEATURES :
1 .Our company machines must pass inspection of 3-7 hours of load test operating before they leave the factory , thus saving customers'time and expense of equipment commissioning
2 . We provide one year's guarantee , and once the equipment damage during this period of time , we supply free of charge and will send professional technical personnel with English translation to you to solve equipment problems.
3 . Our company Including equipments maintenance , troubleshooting and customer feedback.
4 . Complete after-sales service.
5 . We can make machines according to customer's requirements.
Our machine can provide various technical specifications and customization options:
Specification of barbed wire mesh machine:
| Model | CS-A | CS-B | CS-C |
| Core Wire | 1.5-3.0mm | 2.2-3.0mm | 1.5-3.0mm |
| Barbed wire | 1.5-3.0mm | 1.8-2.2mm | 1.5-3.0mm |
| Barbed space | 75mm-153mm | 75mm-153mm | 75mm-153mm |
| Twisted number | 3-5 | 7 | |
| Motor | 2.2kw | 2.2kw | 2.2kw |
| Drive speed | 402r/min | 355r/min | 355r/min |
| Production | 70kg/h, 25m/min | 40kg/h, 18m/min | 40kg/h,18m/min |

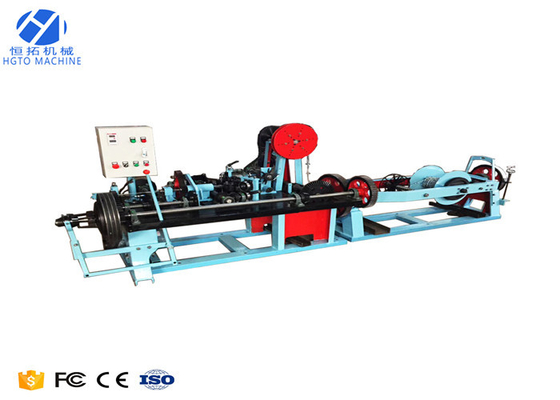

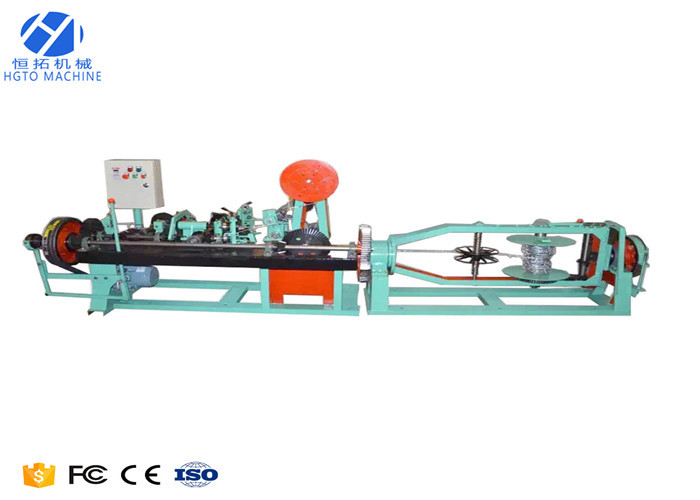

Machine Pictures:
Finished mesh picture:
Machine Loading Picture:
Factory Image:
